Kia K4: Fuses / Engine compartment fuse replacement
Contents:
For fuses located within the engine compartment fuse panel of your Kia K4, follow these maintenance steps:
- Verify that the ENGINE START/STOP button and all vehicle systems are in the OFF position.

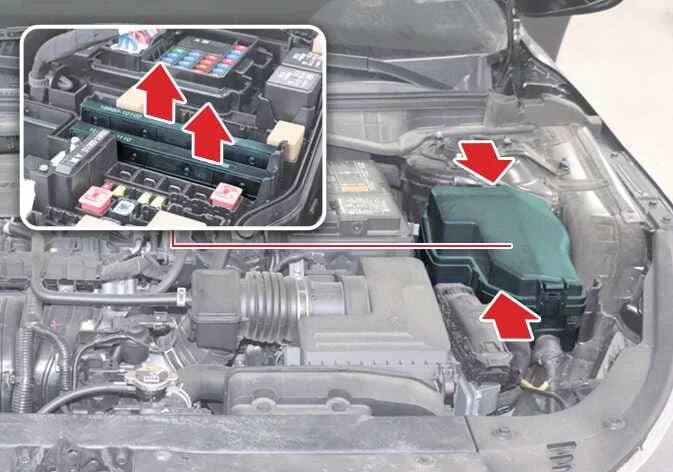

- Open the engine compartment and remove the fuse panel cover by depressing the retaining tabs and lifting the cover upward.
- Use the integrated fuse puller located inside the engine compartment fuse panel to extract the suspected fuse.
- Examine the fuse element. If it is blown, use the puller to insert a new fuse of the exact same rating.
- Ensure the replacement fuse is seated firmly in the clips. If the fit is loose, seek professional assistance from an authorized Kia dealer.
NOTE
After inspecting or replacing fuses, ensure the engine compartment fuse panel cover is snapped securely back into place. You should hear an audible "click" confirming the seal; if not properly secured, moisture or water ingress could cause severe electrical failures in your Kia K4.
TIP
If a multi-fuse assembly is blown, do not attempt to replace it yourself; please consult an authorized Kia dealer for specialized repair.
NOTE
If your Kia K4 exhibits electrical malfunctions despite all individual fuses being intact, the main "BFT" type fuse—located under the positive battery terminal (+) cap—may be disconnected or blown. Because this main fuse is engineered with complex integrated safety features, it requires professional replacement at an authorized Kia dealer.
Main fuse (multi-fuse)
The main multi-fuse is a critical component that protects the primary power distribution circuits of your Kia K4. If you suspect this high-amperage fuse is blown, please follow the professional replacement procedure outlined below. Due to the high current handled by this component, it is essential to perform this task with caution.
|
If the main multi-fuse for the Kia K4 is blown, follow these steps to safely remove and replace it:
- Ensure the ENGINE START/STOP button is fully deactivated in the OFF position and the vehicle's electrical system is completely powered down.
- Disconnect the negative (-) battery cable to prevent any accidental short circuits during the replacement process.
- Carefully remove the mounting nuts highlighted in the diagram above to release the fuse assembly.
- Replace the damaged multi-fuse with a new, genuine Kia replacement part of the exact same amperage rating. Never substitute with a different capacity.
- Reinstall the new fuse by following the removal steps in reverse order, ensuring all nuts are tightened to the correct specification to prevent poor electrical contact.
NOTE
After replacing the main fuse, visually inspect the battery terminal cap to ensure it is latched and closed securely. If the battery cap or the fuse housing cover is not properly sealed, moisture and environmental contaminants may infiltrate the electrical system, potentially causing oxidation, short circuits, or permanent damage to the sensitive electronic modules of your Kia K4.
If you are uncomfortable performing this procedure, or if you encounter any difficulties during the installation, we highly recommend visiting an authorized Kia dealer to have the main fuse replaced by a qualified technician.
