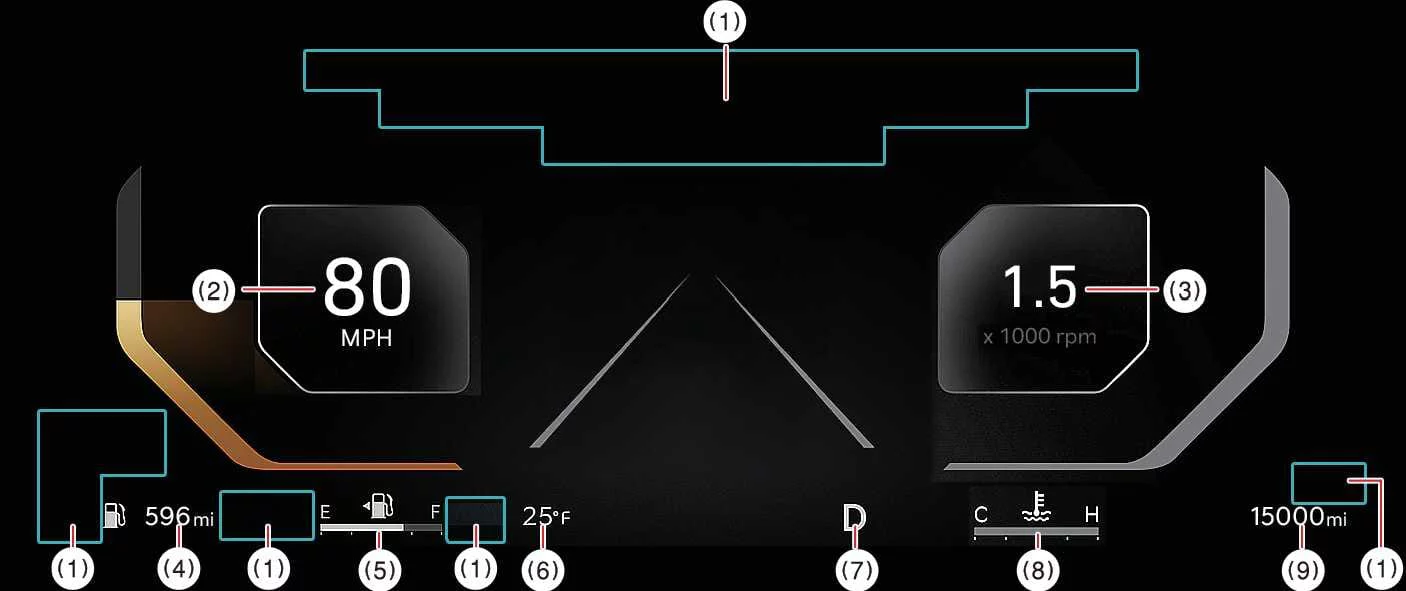

Dashboard instrument cluster display Type A in the Kia K4 — Figure 1. Instrument Cluster Type A

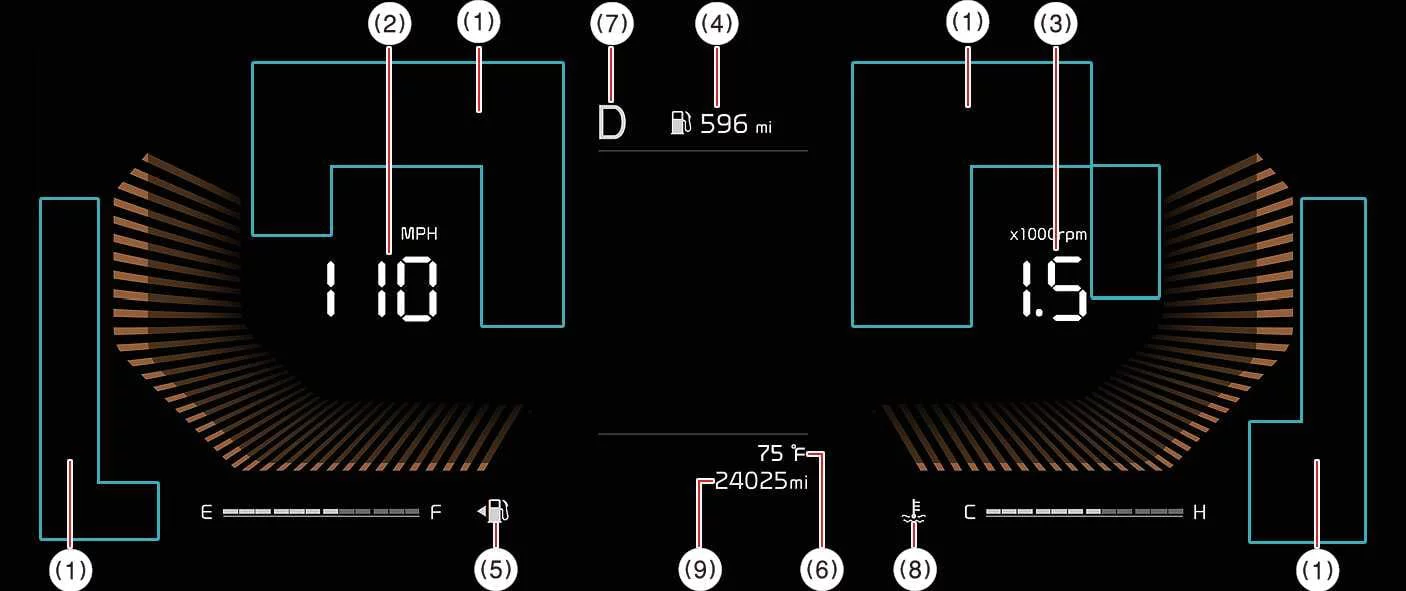

Dashboard instrument cluster display Type B in the Kia K4 — Figure 2. Instrument Cluster Type B

Please be aware that the actual display layout in your specific Kia K4 model may differ slightly from the provided illustrations depending on your vehicle's trim and configuration.

Warning and indicator lights
Speedometer
Tachometer
Distance to empty (Range)
Fuel gauge
Outside temperature gauge
Transmission shift indicator
Engine coolant temperature gauge
Odometer

Gauges ➤

Transmission shift indicator ➤

Adjusting instrument cluster illumination

To customize the brightness of the instrument panel illumination in your Kia K4, simply press the illumination control buttons labeled with "+" or "-" symbols. You can perform this adjustment whenever the ignition switch or the ENGINE START/STOP button is positioned in the ON state, or alternatively, whenever the vehicle's tail lights are activated.

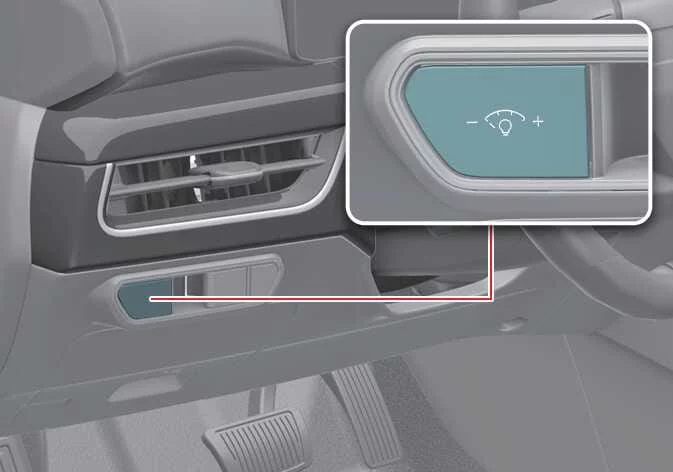

Location of the illumination control buttons for adjusting instrument cluster brightness in the Kia K4

By tailoring the cluster brightness, you can ensure optimal visibility of your Kia K4 data displays, reducing eye strain during night-time driving while maintaining clarity under bright daylight conditions.

WARNING

For your safety and the safety of others, never attempt to adjust the instrument cluster illumination while the Kia K4 is in motion. Attempting to change vehicle settings while driving can result in a loss of focus, leading to a loss of vehicle control and an accident, which may cause serious injury, fatality, or significant property damage.

Warning and indicator lights ➤

LCD display ➤

Resetting the system

Gauges
