Kia K4: Driver assistance guide / Overview

Kia K4 (CL4) 2025-2026 Owner's Manual / Driver assistance guide / Overview

Contents:

The advanced safety and convenience features of your Kia K4 rely on a sophisticated network of sensors strategically placed around the vehicle. These components work in harmony to provide real-time data to the various Driver Assistance Systems, ensuring a safer and more intuitive driving experience. Understanding the location and functionality of these sensors is essential for maintaining the performance of your Kia K4.

Detecting sensor(s)

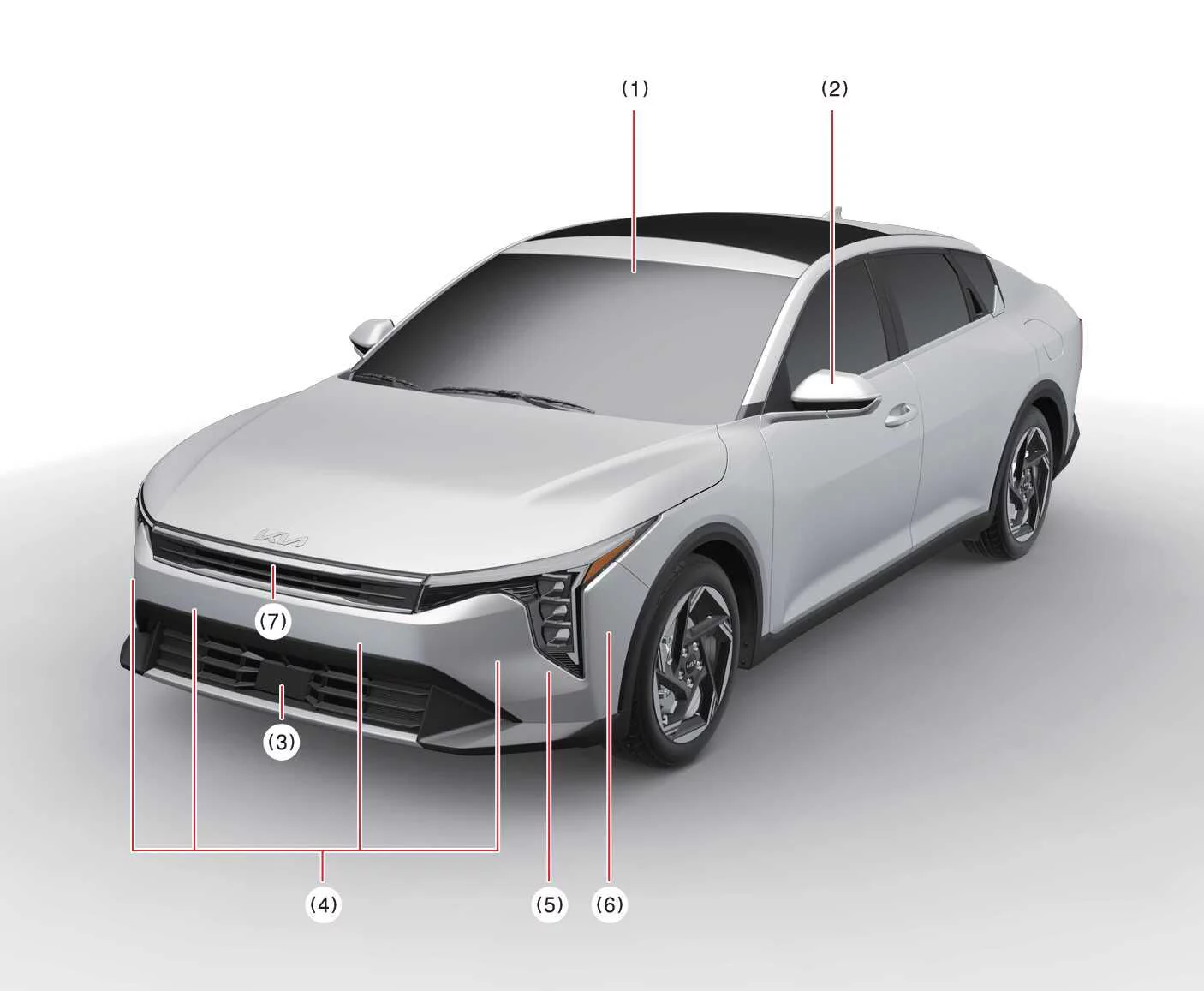

Figure 1. 4Door Front view
Front view diagram of the Kia K4 4-door model showing key sensor locations

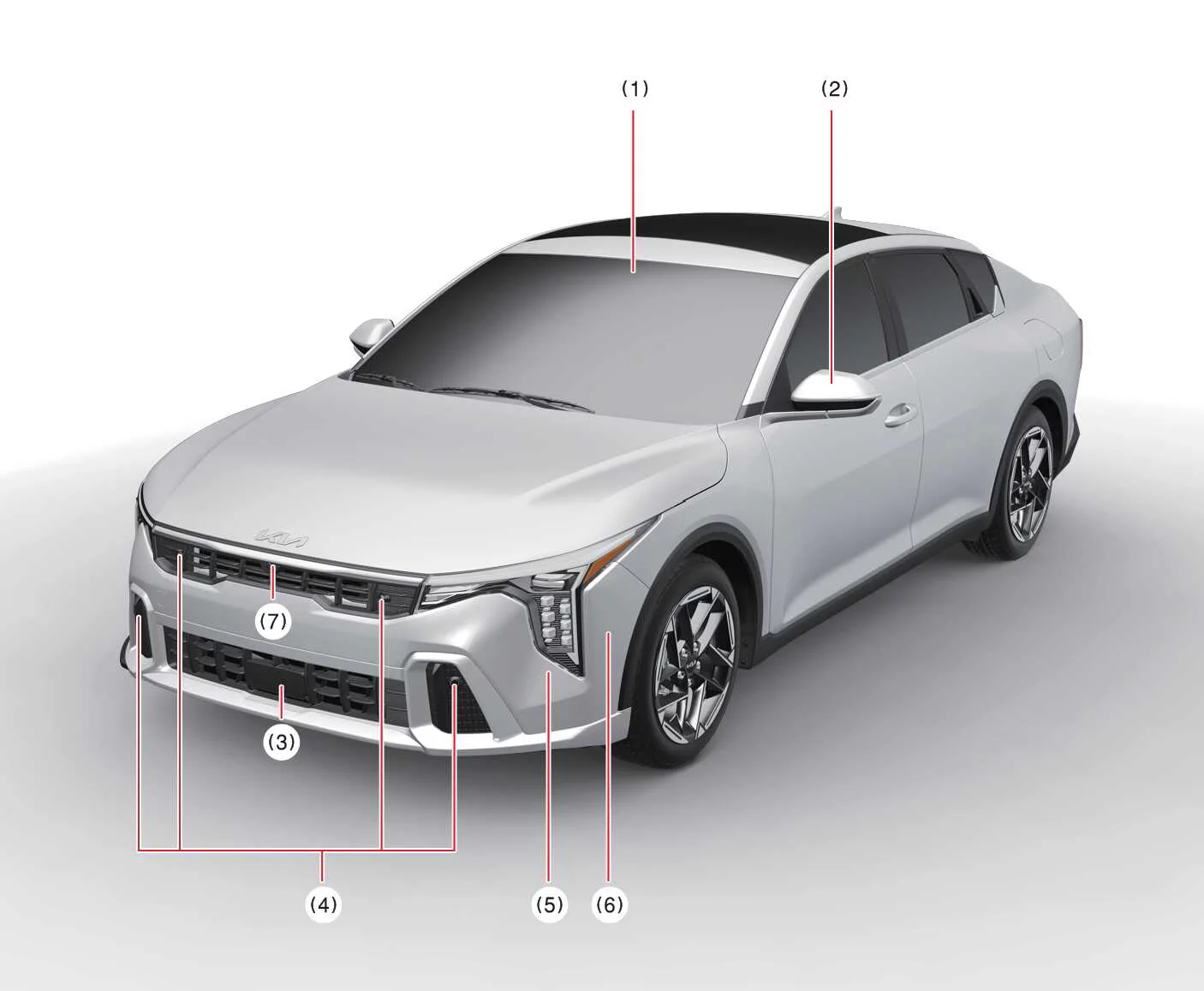

Figure 2. 4Door GT-Line Front view
Front view diagram of the Kia K4 GT-Line 4-door model highlighting integrated safety sensors

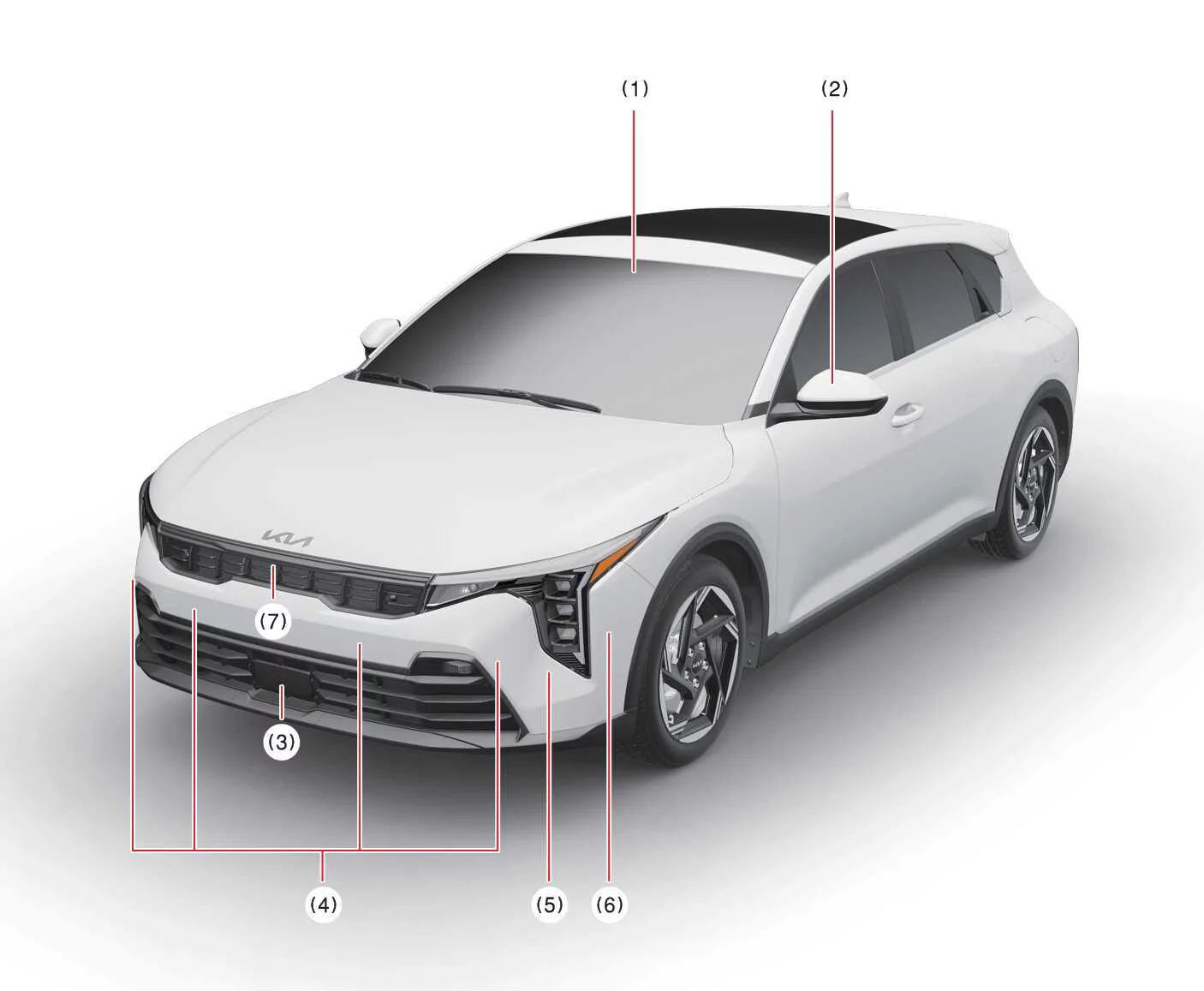

Figure 3. 5Door Front view
Front view diagram of the Kia K4 5-door hatchback model showing sensor placements

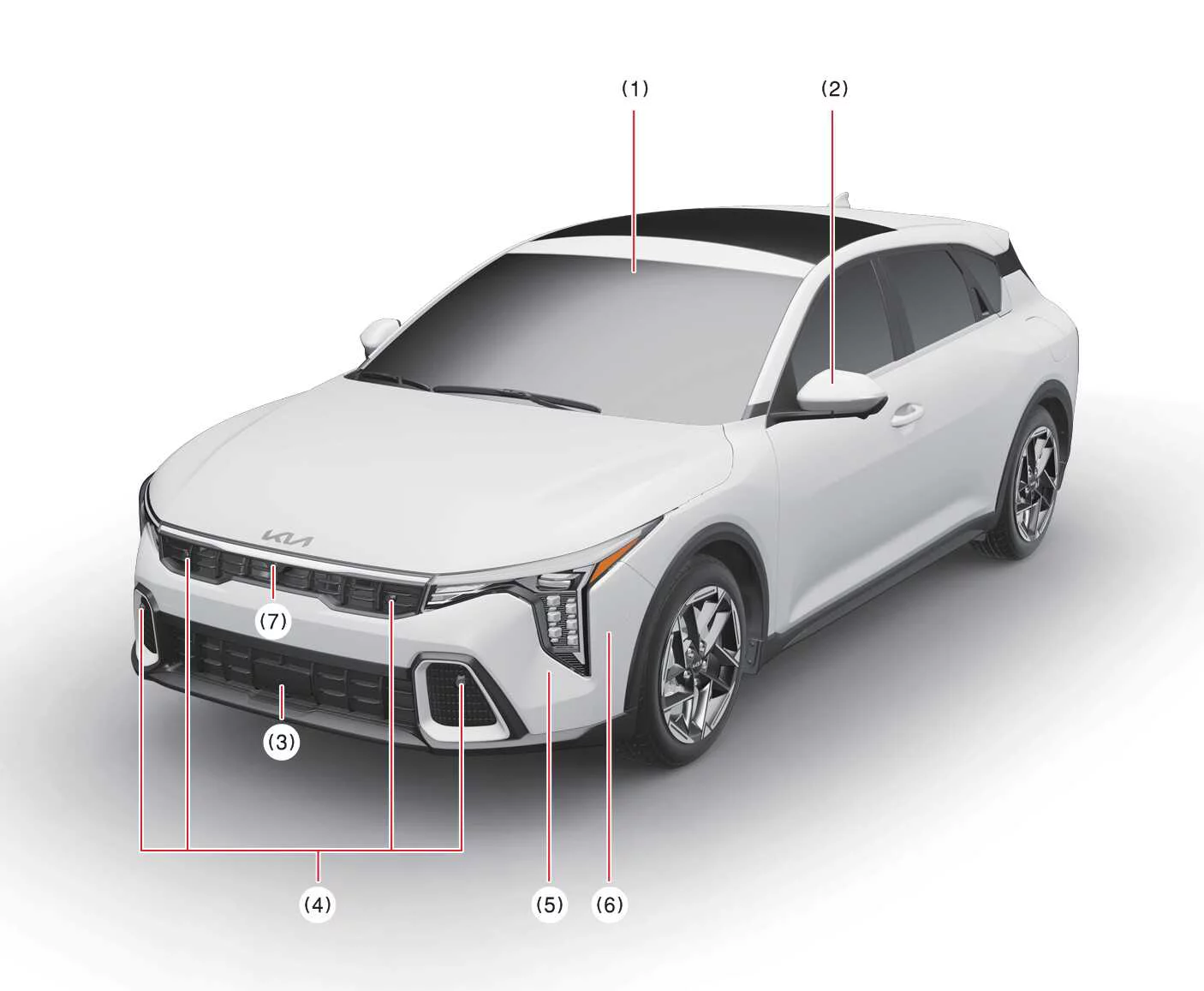

Figure 4. 5Door GT-Line Front view
Front view diagram of the Kia K4 GT-Line 5-door model displaying advanced sensor array

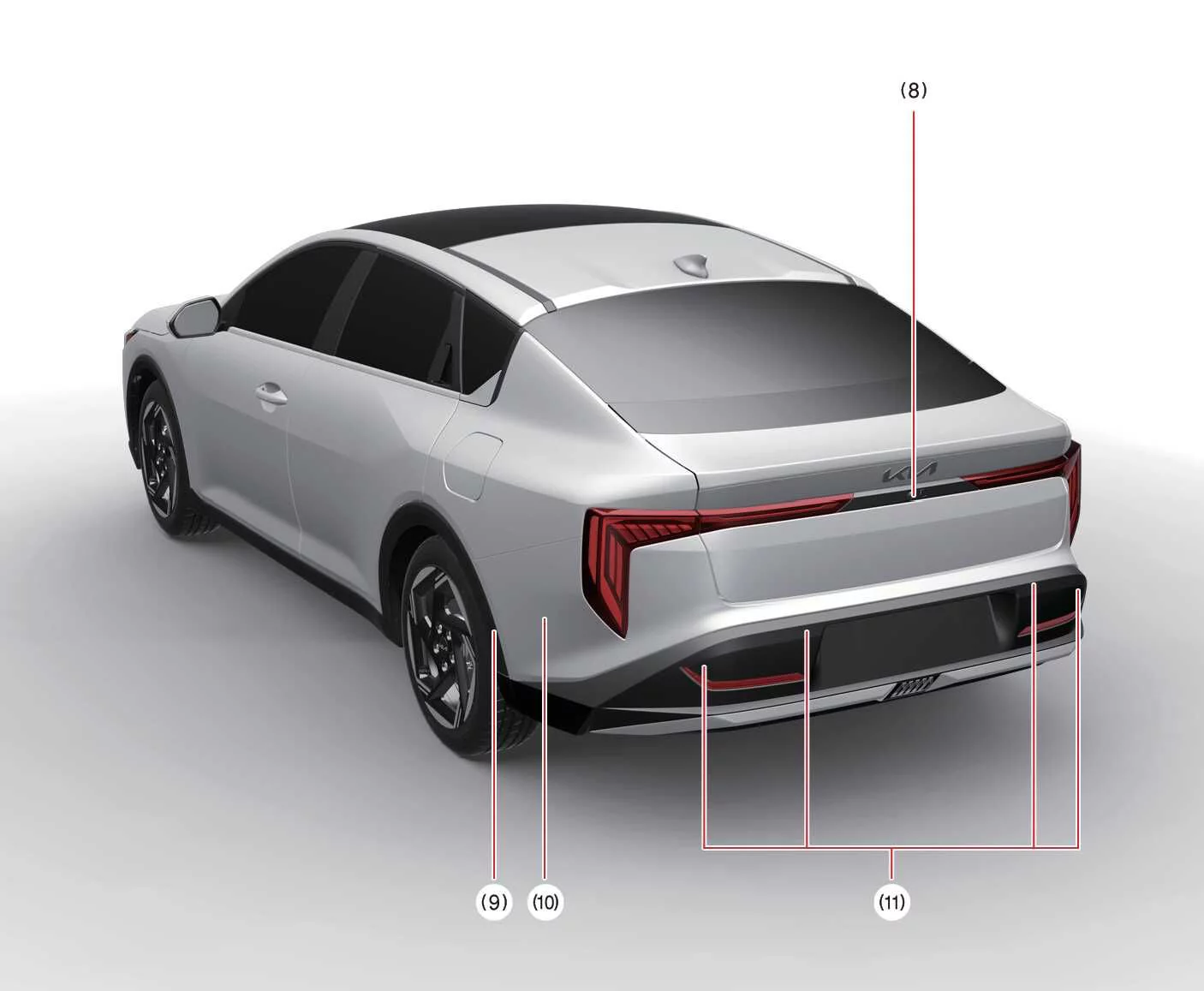

Figure 5. 4Door Rear view
Rear view diagram of the Kia K4 4-door model indicating rear-facing sensor locations

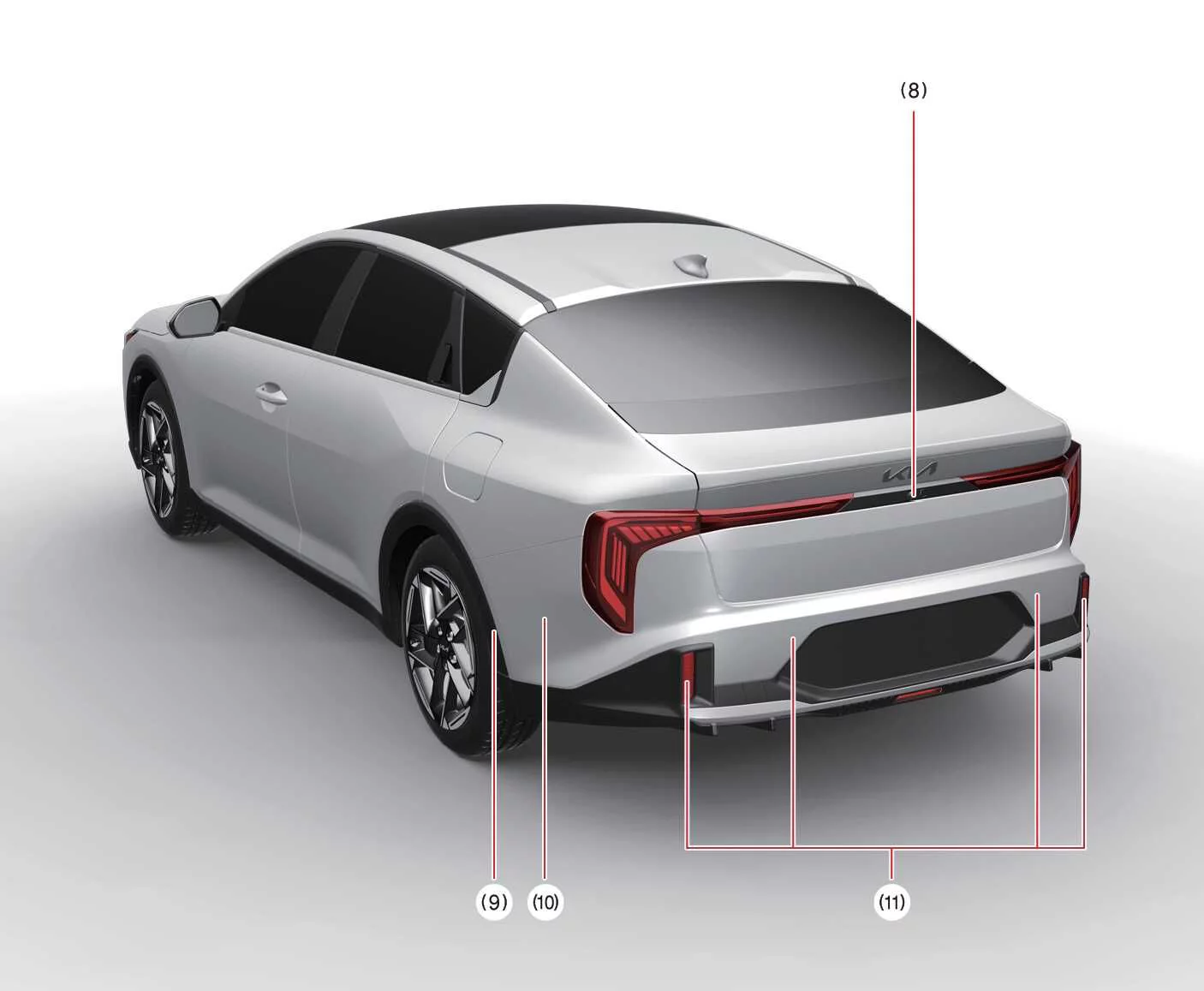

Figure 6. 4Door GT-Line Rear view
Rear view diagram of the Kia K4 GT-Line 4-door model showcasing rear safety sensors

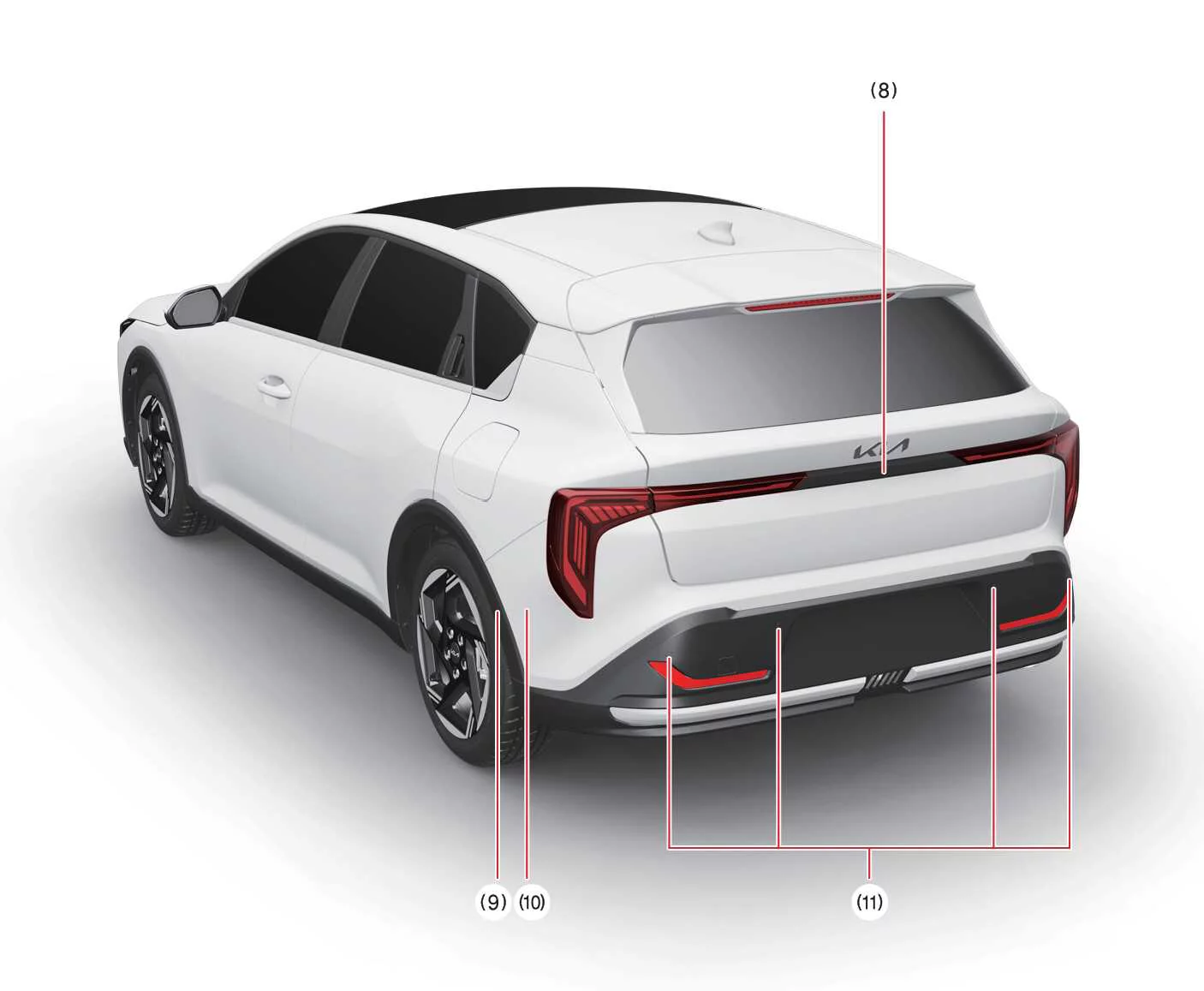

Figure 7. 5Door Rear view
Rear view diagram of the Kia K4 5-door hatchback model highlighting rear sensor array

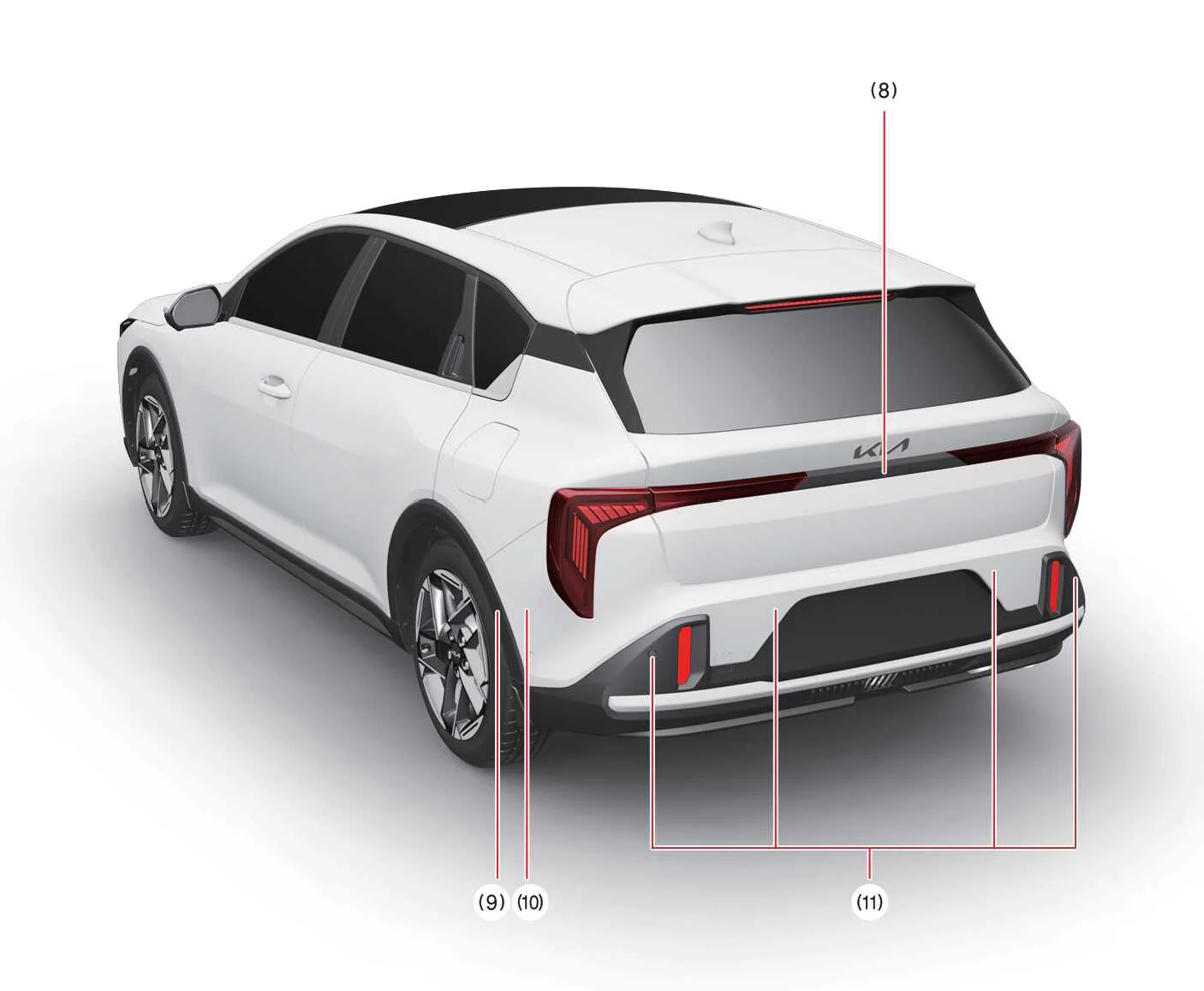

Figure 8. 5Door GT-Line Rear view
Rear view diagram of the Kia K4 GT-Line 5-door model showing rear safety sensor configuration

Refer to the pictures above for the detailed location of the detecting sensors on your Kia K4.

No

Sensor

Function

(1)

Front view camera

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Lane Keeping Assist (LKA)

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)

  • Smart Cruise Control (SCC)

  • Lane Following Assist (LFA)

  • Highway Driving Assist (HDA)*

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

(3)

Front radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(4)

Front ultrasonic sensors*

  • Forward/Reverse Parking Distance Warning (PDW)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(5)

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(6)

Front side ultrasonic sensors*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(7)

Wide-front view camera*

  • Surround View Monitor (SVM)*

(8)

Wide-rearview camera

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

(9)

Rear side ultrasonic sensors*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(10)

Rear corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

(11)

Rear ultrasonic sensors*

  • Forward/Reverse Parking Distance Warning (PDW)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

Driver assistance guide

Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)
